Description

Chapter 1 Product Introduction

• High Refreshing Ratio and High Grayscale

Refreshing ratio can be up to 3840Hz, grayscale can be up to 16 bit, picture display is exquisite, clear, brightness is stable and evenness, no dazzling, no “particle” feeling.

• The cabinet is lightweight

500*500mm cabinet weight is just 6.5KG and 500*1000mm is 12KG, just need one person being able to split joint easily.

• IC Driving

It has the function of list up and down hidden, high refreshing ratio, dark dot amended in first line, low grayscale amended, color cast and spot amended, etc.

• Big Visual Angle, High Contrast Ratio

It is to adopt red, green and blue SMD LED chips, nice conformity, contrast ratio can be up to 5000:1, visual angle can be up to above 140°, high reliability, long lifespan.

• Energy-Saving with Low Power Consumption
• Great Heat-dissipation, low temperature rise
• Modularization Design, Easy to realize front and rear maintenance
• Just need make some adjustment, it would become LED floor tile screen, magic screen, etc.
• Protection Angle to prevent it from bump

The protection bump can be effective to prevent LED light and lamp-shade from damage during transportation.

• Dynamic Low Power Consumption
• Even Current Backup for Power Supply
• Low Voltage to Switch



Chapter 2 Structural Appearance

1.1 Module Pictures

modules(250*250mm)

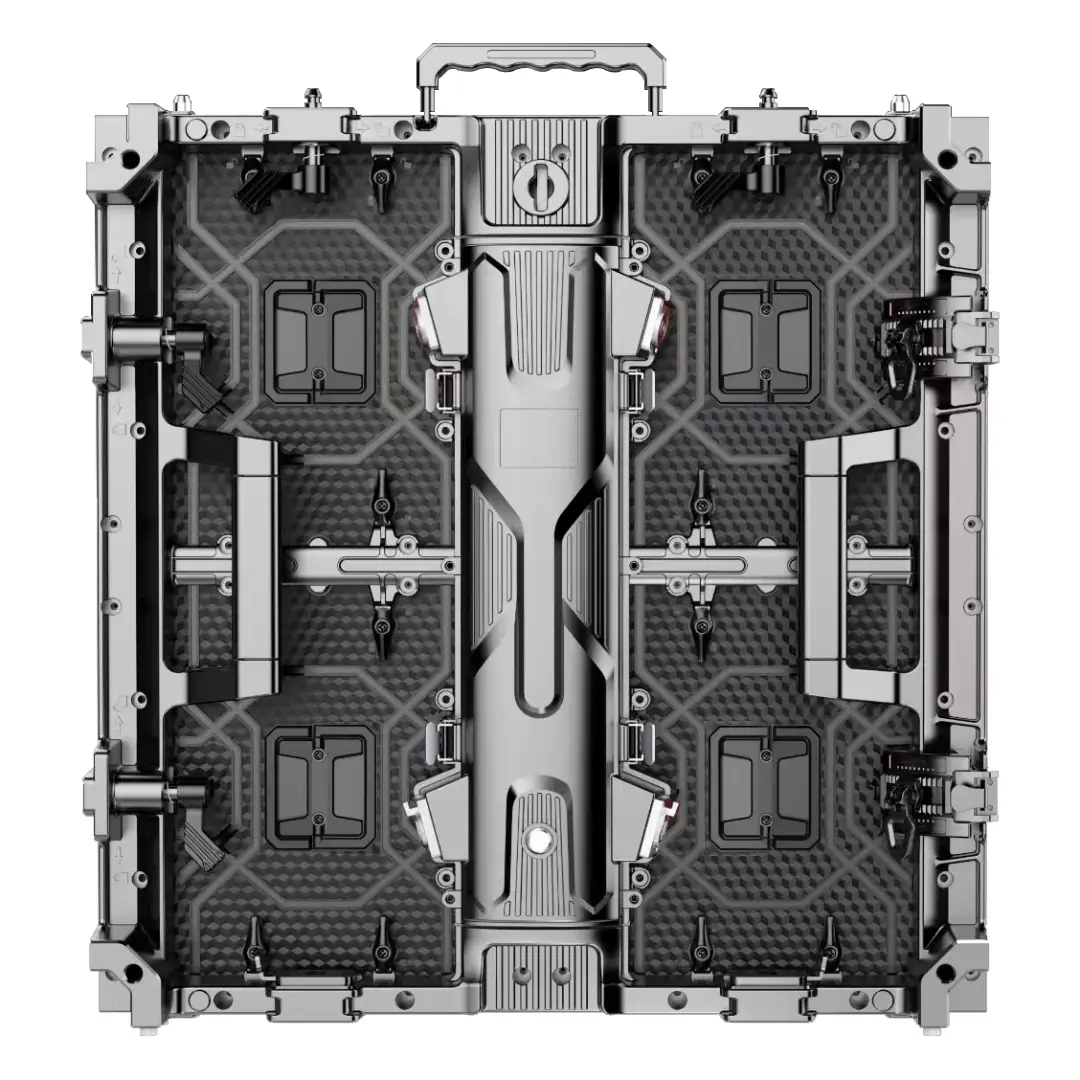

1.2 cabinet Pictures

Aluminium profiles cabinet (500*500mm/500*1000mm)

1.3 Technical Parameters

Technical Parameters

Item	H1.56	H1.95	H2.6	H2.97		H3.91
Pixel Pitch(mm)	1.5625	1.953	2.604	2.976		3.91
Cabinet Resolution(W×H)	320×320	256×256	192×384 192×192	168×336 168×168		128×256 128×128
Cabinet Size(mm)	500×500/500×1000 (70 thickness)
Module Qty/cabinet(W×H)	2×2/ 4×2
Cabinet Weight(kg/cabinet)	6.5/12.5
Cabinet Material	Aluminium profiles
IP Rating	Indoor IP20,Outdoor IP65
White Balance Brightness(nits)	Indoor 0~1200cd/m²,Outdoor 4000-6500cd/m²
Color Processor(bit)	12-16
Color Temperature(K)	6500-9000
Visual Angle(H/V)	150°/ 150°
Chromaticity uniformity	Within ±0.003Cx, Cy
Contrast Ratio	≥5000:1
The Max Power Consumption(W/m2)	650
Average Power Consumption(W/m2)	185
Input Voltage	AC100~240V
Frequency(Hz)	50&60
IC Driving(s)	1/40	1/32	1/32		1/28		1/16
Refreshing Ratio(Hz)	3840 (7680 optional)
Maintenance Method	Front
Lifespan(hrs)	100,000
Work Temperature/Humidity	-10℃-50℃/10%RH-98%RH (Non Condensing)
Storage Temperature/Humidity	-20℃-60℃/10%RH-98%RH (Non Condensing)

*Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice.

1.4 Display Installation

Diagram for Connection

1.5 Networking Introduction

Topographic Picture for networking

Chapter 2 Application Field

It can be used for most of indoor & outdoor areas, such as stage performance, concert, business conference, etc.
