Description

Chapter 1 Product Introduction

• Common Cathode with Energy-Saving
  Common cathode is an energy-saving power supply technology for LED display, which can effectively solve the problems of high screen temperature and excessive power consumption of common anode circuit. the average temperature of the panel of the common cathode circuit is 15℃ lower than that of the traditional common anode circuit，and the power consumption is reduced by more than 20%.

• Quick assembly and disassembly, convenient and efficient
  Hidden handles, hard connections, concealed wire design, easy maintenance; fast lock connections on the side for quick assembly and disassembly, high flatness, slim cabinet, lightweight, convenient for transportation, saving time and labor costs.
• Collision-resistant design, safe and reliable
  High-quality collision-resistant top protection and soft masks are used, with good toughness and impact resistance, effectively protecting LED chips and enhancing the safety of athletes.

• Exceptional picture quality, excellent visual experience
  Screen brightness exceeding 5500 nits, clear visibility even in strong light; high refresh rate, high contrast, stable high-definition live images without ghosting, flickering, or ripples.

• High protection level
  The cabinet is designed with full waterproof aluminum, featuring corrosion resistance, high precision, good flatness, deformation resistance, and good heat dissipation. Three-in-one outdoor waterproof SMD LED chips, combined with advanced gel-filling technology, can achieve an IP66 protection level, with strong environmental adaptability for all-weather outdoor operation.
• Drive solution

It has top and bottom line concealment functions, high refresh rate, first-line dimming improvement, low grayscale color shift, and mura improvement functions.

Chapter 2 Structural Appearance

2.1 Module Pictures

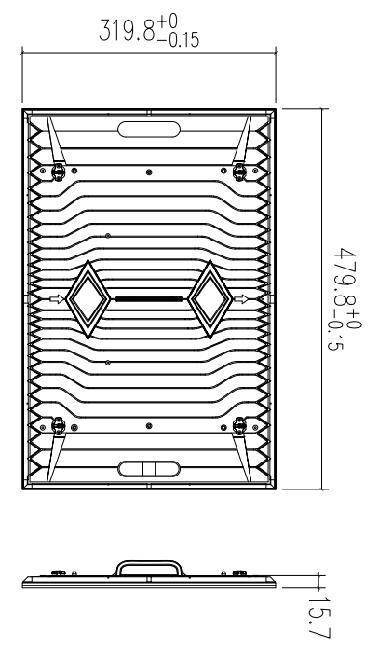

Die-cast aluminium modules(480*320*15.7mm)



2.2 Cabinet Pictures

Die-cast aluminium cabinet(960*960*87mm)

Corner

2.3 Technical Parameters

Technical Parameters（Common anode）

Item	APRO4.44	APRO5.7	APRO6.67	APRO8	APRO10
Pixel Composition(SMD)	1921	2727	2727	2727	2727
Pixel Pitch(mm)	4.44	5.7	6.67	8	10
Module Resolution(W×H)	108×72	84×56	72×48	60×40	48×32
Module Size(mm)	480×320×16
Module Weight(kg)	2
Module Qty/Cabinet(W×H)	2×3
Cabinet Resolution(W×H)	216×216	168×168	144×144	120×120	96×96
Cabinet Size(mm)	960×960×87
Cabinet Area(㎡)	0.92
Cabinet Weight(kg/cabinet)	29
Cabinet Material	Profile cabinet
Cabinet Density（dot/m²）	50625	30625	22500	15625	10000
IP Rating	IP66
White Balance Brightness(nits)	≥5000	≥5000	≥5500	≥5500	≥6000
Color Processor(bit)	16
Color Temperature(K)	6500-9000
Visual Angle(H/V)	140°/ 120°
Luminous point centre deviation	＜3%
Luminance uniformity	≥97%
Chromaticity uniformity	Within ±0.003Cx, Cy
Contrast Ratio	≥15000:1
The Max Power Consumption(W/㎡)	550	550	550	550	550
Average Power Consumption(W/㎡)	186	186	186	186	186
Input Voltage	AC100~240V
Frequency(Hz)	50&60
IC Driving(s)	1/9	1/7	1/6	1/3	1/2
Refreshing Ratio(Hz)	3840
Maintenance Method	Front and Rear
Lifespan(hrs)	100,000
Work Temperature/Humidity	-40℃-80℃/10%RH-98%RH (Non Condensing)
Storage Temperature/Humidity	-20℃-60℃/10%RH-98%RH (Non Condensing)

*Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice.

2.4 Packing List

• Packing List

Packing List	Quantity	Unit
LED Display	1	Set
User Manual	1	pcs
Approved Certificate	1	pcs
Warranty Card	1	pcs
Construction Notification	1	pcs



2.5 Power Supply Configuration Project

• Supply Configuration Project

Power Supply	Configuration Project
300/400W Power Supply	Can load 4pcs modules



2.6 Accessories

• Accessories List

Accessories
Power Supply	Single Cable	Screws, connecting sheet, Sleeve Piece
equipment for front and rear maintenance







Chapter 3 Interface Definition

3.1 Interface Picture（HUB75）

Interface Picture（HUB75）



3.2 Interface Definition

Interface Definition

Pin	Signal	Function	Pin	Signal	Function
1	R1	Red Data Signal	2	G1	Green Data Signal
3	B1	Blue Data Signal	4	GND	Power Ground
5	R2	Red Data Signal	6	G2	Green Data Signal
7	B2	Blue Data Signal	8	E	Row Decoding Signal
9	A	Row Decoding Signal	10	B	Row Decoding Signal
11	C	Row Decoding Signal	12	D	Row Decoding Signal
13	CLK	Clock Signal	14	LAT	Latch Signal
15	OE	Enable Signal	16	GND	Power Ground



Chapter 4 Installation

4.1 Kit Installation

Hole Installation Diagram for Kit

4.2 Cabinet Installation

Hole Installation Diagram for Kit

4.3 Display Installation

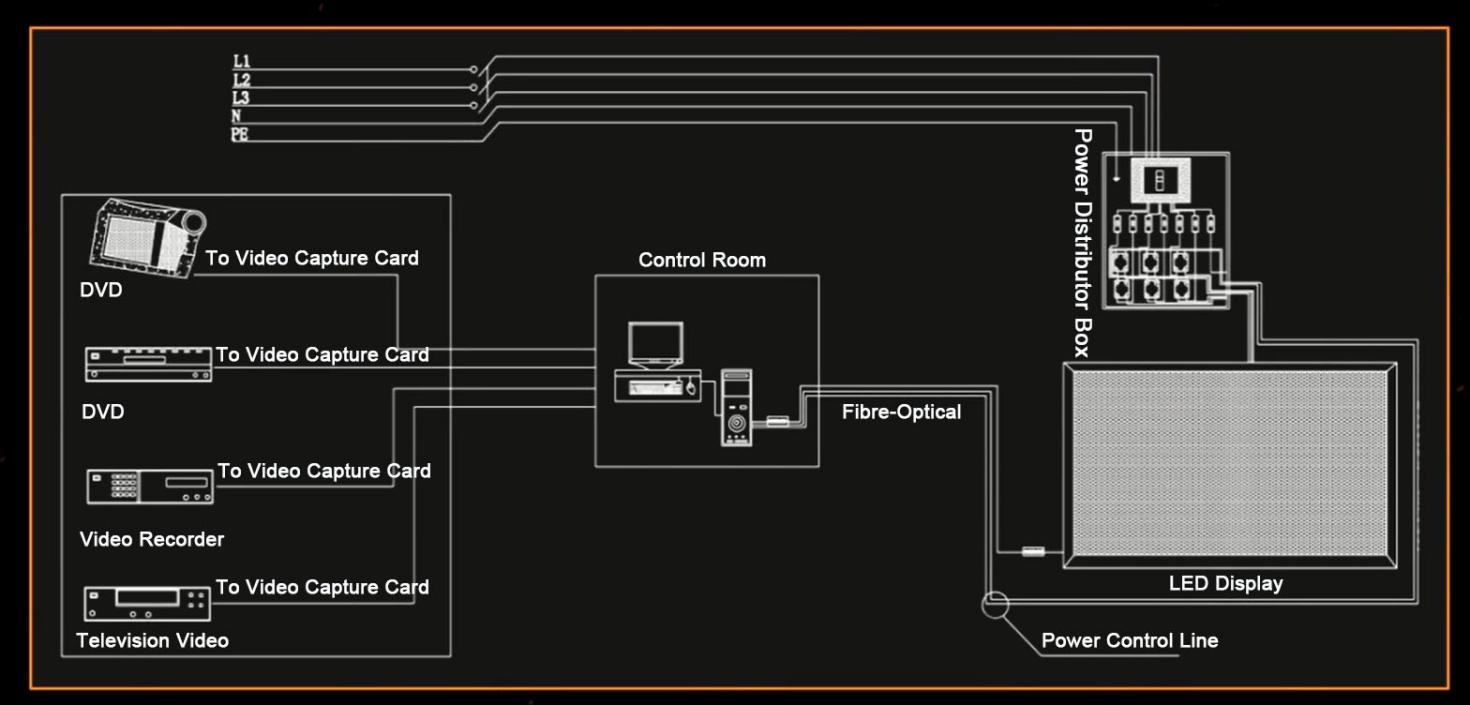

Diagram for Connection

4.4 Networking Introduction

Topographic Picture for networking







Chapter 5 User Manual

5.1 Notification

Notification

Item	Notification
Temperature	Keep the work temperature within -10℃～50℃
Humidity	Keep the storage temperature within -20℃～60℃
Waterproof	Keep the work humidity within 10%RH～98%RH
Dust-proof	Keep the storage humidity within 10%RH～98%RH
Anti-Electromagnetic radiation	IP66
Electrostatic Prevention	IP66
Temperature	LED display shouldn’t put under the environment where has strong interference by electromagnetic radiation, which would be easy to picture display abnormal.
Humidity	It should be ground connected well for power supply, cabinet, mental cover of display body, the resistance of ground connection<10Ω, to avoid making any damage to electric components.

5.2 User Manual

User Manual

Item	User Manual
Electrostatic Protection	The installer need wear electrostatic ring and electric gloves, each equipment should take ground connection well when installing.
Connection Type	There are positive and negative electrode silk printed on module, don’t allow to reverse connect, and prohibit to connect with AC 220V.
Operate Type	Prohibit to assemble module, cabinet and whole of display under power on, operation should be under power off completely, to protect personal safety; Prohibit anyone to touch when the LED display is working, in case the static electricity which is generated by body to break through LED and other components.
Dismantle and Transportation	Don’t allow to throw, push, compress module, to prevent module falling down, to avoid breaking kit, damage LED chips, etc.
Environmental Inspection	It should match temperature and humidity meter for LED display at installation site, to monitor its surrounding environment, so that it can find out if LED display being affected with damp, moisture, etc.
The Usage of LED display	1.The environmental humidity should be 10%RH~65%RH, it is suggested to turn on LED display one time each day, normal to use above 4 hours each time, to remove its damp.
	2.When the environmental humidity is above 65%RH, it should make dehumidification to environment, and it is suggested to work LED display above 8h each day.
	3.When LED display has not turned on for a long time, it should preheat LED display to remove moisture before use, to avoid damage LED because of damp, the specific method: 20% brightness to work for 2h, 40% brightness to work for 2h, 60% brightness to work for 2h, 80% brightness to work for 2h, 100% brightness to work for 2h, by this to gradually increase its brightness.

5.3 Acceptance Request and Method

Acceptance Request and Method for LED display

Item	Acceptance Request and Method
Brightness of LED Display	Switch LED display to work as full brightness, use light-gun to measure the brightness of LED display within 10 minutes. When measuring its brightness, the light-gun need be vertical to LED display, to adjust the distance of light-gun and LED display, ensure the view window, black area, cover above 16 pixels, adjust focal length, to ensure LED chip being able to clearly view in eyepiece, then measure and record brightness data.
Visual Angle	The one should stand on the angle of 140°, bottom angle 65°to LED display when making measurement, it is requested that LED display should not have obvious the problem of dark block.



Chapter 6 Application Field
