Description

 Chapter 1  Product Introduction

1.  super load-bearing

LED intelligent interactive floor tile screen each component, according to different mechanical design, the limit load per square meter can be as high as 3 tons.

1.  Moisture-proof and anti-skid

The bottom shell, mask, power cord and signal line of indoor LED floor tile screen module are specially designed and equipped with waterproof and moisture-proof materials. They are made of raw materials with low moisture absorption coefficient. After many sealing treatments, they have good waterproof and moisture-proof function, and the waterproof level of IP45 can be reached before and after the box body.

3. Super wear-resistant

LED intelligent interactive floor tile screen mask is made of imported PC material, which has high wear resistance and flexibility, as well as good resistance to high and low temperature. And according to the principle of mechanics design, it has good wear resistance and load-bearing function.

4. Interactive Customization

LED intelligent interactive floor tile screen can have sensors built in, and udp protocol is used to produce interactive materials according to the interactive protocol. Each square meter box screen can have 128 sensor chips built in, with low density, which can realize multi-person interaction and point-to-point interaction.



Chapter 2  Appearance Structure

2.1 Appearance Picture

                           Picture 2-1  Module Appearance Picture

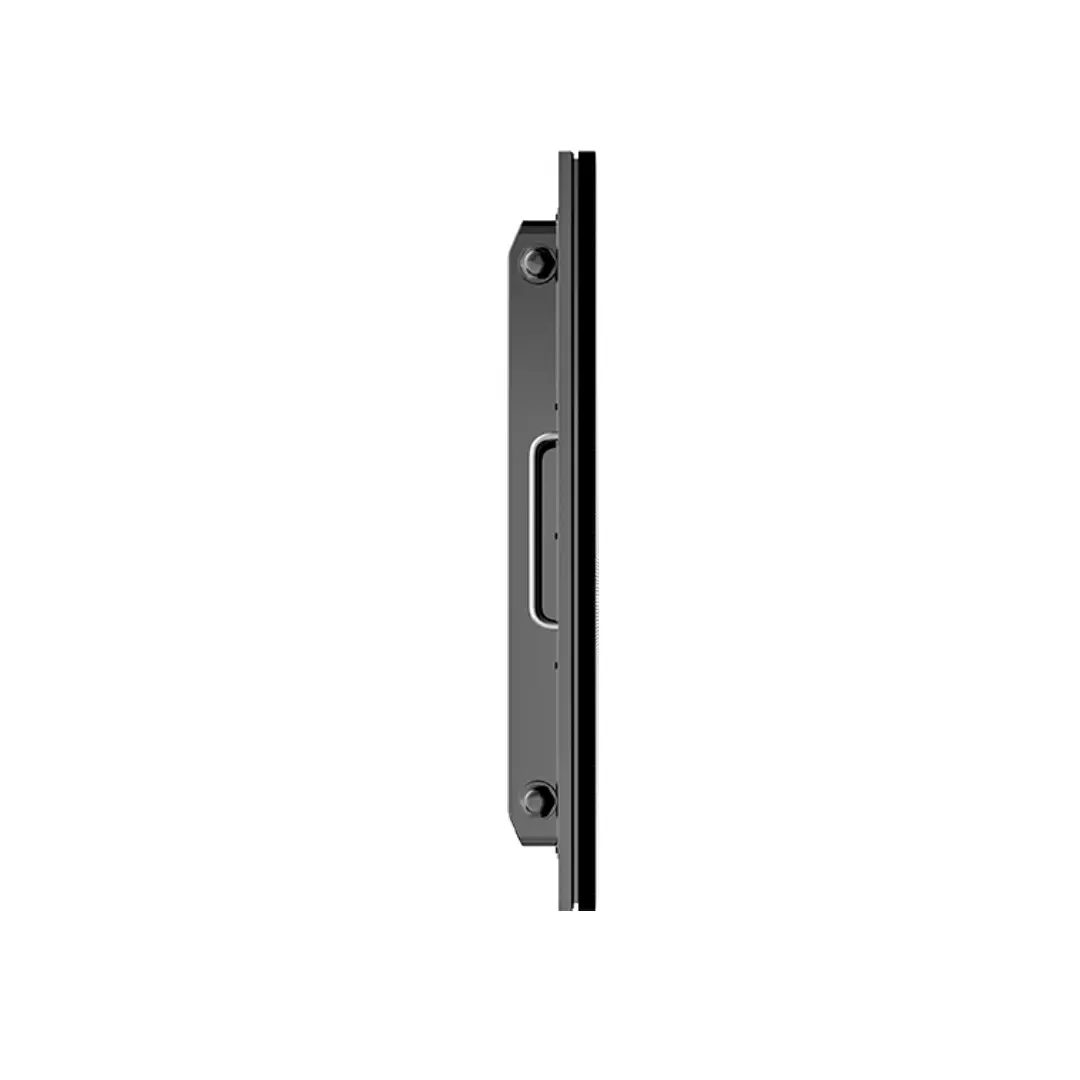

Picture 2-3  Cabinet Appearance Picture

2.2 Technical Parameter

Item	FL1.95	FL2.5	FL2.6	FL2.97	FL3.91
Pixel Composition（SMD）	1415	1415	1415	1415	1921
Pixel Pitch（mm）	1.95	2.5	2.604	2.976	3.91
Module Resolution（W×H）	128*128	100*100	96*96	84*84	64*64
Module Size（mm）	250*250*18	250*250*18	250*250*18	250*250*18	250*250*18
Module Weight（Kg）	0.7（plastic module），1（Aluminum module）
Module Qty/Cabinet	2*2	2*2	2*4 / 2*2	2*4 / 2*2	2*4 / 2*2
Cabinet Size（mm）	500*500*83
Cabinet Resolution（W×H）	256*512/256*384 /256*256	192*384/192*288 /192*192	168*336/168*252 /168*168	128*256/128*192 /128*128	104*208/104*156/104*104
Cabinet Area（m²）	0.5 / 0.375 / 0.25	0.5 / 0.375 / 0.25	0.5 / 0.375 / 0.25	0.5 / 0.375 / 0.25	0.5 / 0.375 / 0.25
Cabinet Weight（Kg）	13.6 / 10.2 / 6.8 （plastic module），16 / 12 / 8（Aluminum module）
Cabinet Material	Profile aluminum Cabinet Material
Cabinet Density（dot/m²）	262144	147456	112896	65536	43264
IP Rating	IP66	IP66	IP66	IP66	IP66
Single Dot Brightness Amended Single Dot Color Amended	Yes	Yes	Yes	Yes	Yes
White Balance Brightness（cd/m²）	4500	4500	4500	4500	4500
Color Temperature（K）	6500-9000	6500-9000	6500-9000	6500-9000	6500-9000
Visual Angle（H/V）	140°/120°	140°/120°	140°/120°	140°/120°	140°/120°
Contrast Ratio	5000：1	5000：1	5000：1	5000：1	5000：1
The Max Power Consumption（W/m²）	700	700	700	700	700
Average Power Consumption（W/m²）	235	235	235	235	235
Input Voltage （V）	200-240	200-240	200-240	200-240	200-240
Maintenance Method	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear
Frequency	50&60	50&60	50&60	50&60	50&60
IC Driving（Constant Current）	1/32s	1/24s	1/21s	1/16s	1/13s
Grayscale	It is available within 65536
Refreshing Ratio（Hz）	3840	3840	3840	3840	3840
Color Processor	16bit	16bit	16bit	16bit	16bit
Lifespan（h）	100000	100000	100000	100000	100000
Work Temperature/Humidity	-10℃-50℃/10%RH-98%RH（no condensation） Work Temperature/Humidity
Storage Temperature/Humidity	-20℃-60℃/10%RH-98%RH（no condensation）

Table 2-1  Technical Parameter
